PRODUCTS CATALOG
Certified metallurgical products engineered for extreme structural performance. Explore technical specifications, chemical compositions, mechanical properties, and standard dimensions.
REBAR
BILLET
ROLLED COILS
STRUCTURAL BEAMS

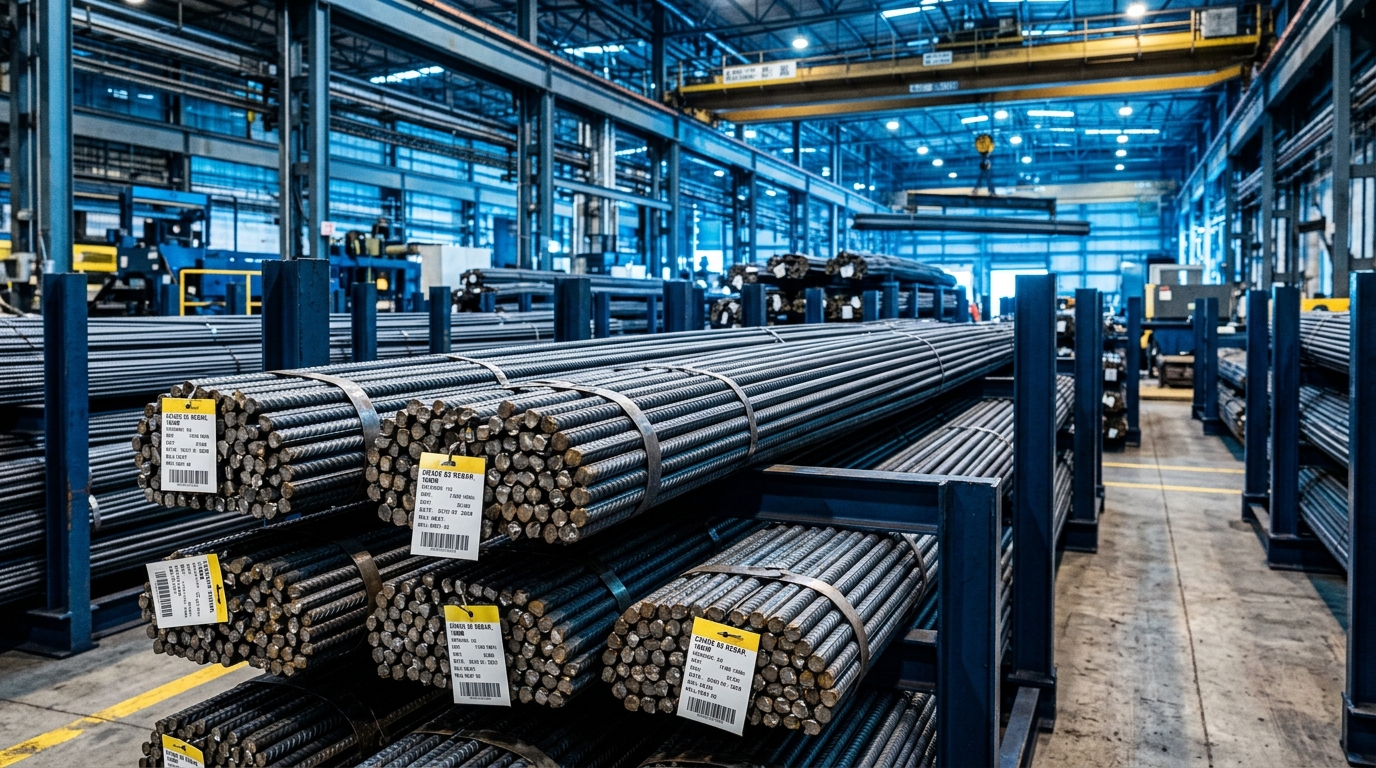

HIGH-TENSILE TMT REBAR
MMD Russia Steel TMT rebar manufactured from in-house high-purity billets using state-of-the-art automated rolling processes imparts uniform mechanical properties across the bar, ensuring unmatched quality conforming to local and international standards (ISO 9001:2015, CE, GOST-R, ASTM A615 Grade 60, BS 4449 Grade B500B).
Product Specification
Rebar Chemical Composition (% by Mass)
| Steel Grade | Carbon (C) Max | Silicon (Si) Max | Manganese (Mn) | Phosphorus (P) Max | Sulfur (S) Max | CEQ Max |
|---|---|---|---|---|---|---|
| BS 4449 B500B | 0.22% | 0.35% | 0.65 - 1.20% | 0.045% | 0.045% | 0.43% |
| ASTM A615 Gr 60 | 0.30% | 0.50% | 0.90 - 1.50% | 0.035% | 0.045% | 0.48% |
| GOST 5781 A500C | 0.20% | 0.30% | 0.80 - 1.40% | 0.040% | 0.040% | 0.45% |
Rebar Mechanical & Tensile Properties
| Specification Standard | Yield Strength Re (N/mm²) | Tensile Strength Rm (N/mm²) | Rm / Re Ratio | Elongation Agt (%) | 180° Bend Test |
|---|---|---|---|---|---|
| BS 4449 Grade B500B | Min 500 N/mm² | Min 575 N/mm² | Min 1.15 | Min 14.0% | Pass (No Cracks) |
| ASTM A615 Grade 60 | Min 420 N/mm² | Min 620 N/mm² | Min 1.25 | Min 12.0% | Pass (No Cracks) |
| GOST 5781 Grade A500C | Min 500 N/mm² | Min 600 N/mm² | Min 1.18 | Min 16.0% | Pass (No Cracks) |
Rebar Nominal Diameters & Standard Weight
| Nominal Size (mm) | Cross Section Area (mm²) | Unit Weight (kg/m) | Standard Length (m) | Tolerance (%) |
|---|---|---|---|---|
| 8 mm | 50.3 mm² | 0.395 kg/m | 6.0m / 12.0m | ± 6.0% |
| 10 mm | 78.5 mm² | 0.617 kg/m | 6.0m / 12.0m | ± 5.0% |
| 12 mm | 113.1 mm² | 0.888 kg/m | 12.0m / 15.0m | ± 4.5% |
| 16 mm | 201.1 mm² | 1.578 kg/m | 12.0m / 15.0m | ± 4.5% |
| 20 mm | 314.2 mm² | 2.466 kg/m | 12.0m / 15.0m | ± 3.5% |
| 25 mm | 490.9 mm² | 3.853 kg/m | 12.0m / 15.0m | ± 3.5% |
| 32 mm | 804.2 mm² | 6.313 kg/m | 12.0m / 15.0m | ± 3.0% |
| 40 mm | 1256.6 mm² | 9.865 kg/m | 12.0m / 15.0m | ± 3.0% |
Bundling & Export Packaging Standards
- Bundle Mass: Strapped in 2.0 MT to 3.0 MT high-tensile metal bundles for easy crane handling.
- Tagging: Double weather-resistant metallic tags detailing Heat Number, Grade, Size, and Mill Test Certificate ID.
- Documentation: 100% full Mill Test Certificate (MTC) supplied with every export shipment.
Need Custom Steel Specifications or Bulk Quotes?
Our metallurgical team provides tailored lengths, custom chemical alloys, and instant export pricing.
